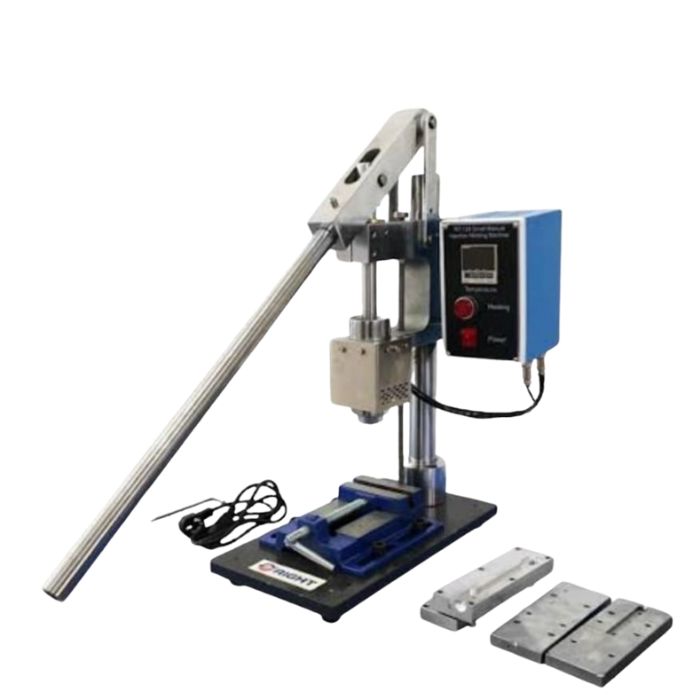

Plastic Injection Moulding Machine 70GM
Our 70GM Manual Injection Moulding Machine offers precision and reliability for small to medium-scale production. Designed for ease of use and durability, it’s the perfect solution for manufacturers seeking efficiency and quality in their moulding processes.
Applications:
Ideal for prototype development, custom plastic parts, and small-scale plastic molding.
DESIGN PARAMETERS WITH STANDARD SUPPLY:
1) 600 mm L / 25 ID /35 OD / Barrel Molding Machine – HDPE/PP/LDPE/PS
2) Process Control Panel synchronized by one master control
SPECIFIC DATA:
Material to be processed: Recycled HDPE/PP/LDPE/PS
Hydraulic Strock: NO
Main Jack Capacity NO
Barrel Size: 600 mm L / 25 ID /35 OD
Total Connected Load: 3-4 kW (Approx.)
Product Details
Key Features:
• Capacity: 70 gm shot size for small and detailed parts
• Manual Operation: Simple and reliable manual control system
• Compact Design: Space-saving for small workshops or limited areas
• Durable Construction: Built with high-quality materials for long-term use
• Customizable Settings: Adjustable parameters for specific molding needs
Why Choose Our Injection Molding Machine 70 gm Manual?
• Precision molding for small and detailed products
• Cost-effective and energy-efficient manual operation
• Compact and customizable to fit specific production needs
MAIN INJECTION:
Barrel Type : Smooth Feed Barrier type high speed design
Barrel Material : EN 41B Nitro alloy steel duly gas nitride
Smooth Injection rod tip to push the material into barrel nozzle.
Main Motor: NO
Barrel Heating Zones: 2 Heating Zones (Ceramic Band Heater with Energy Saving)
Barrel Heating Loads: 4 kW.
Hopper Loader: M.S. Fabricated Hopper
Structure: MS fabricated heavy‐duty structure made from angles, channels and Covered with sheet
Enclosed Hydraulic system and mold filling station.
