Industrial Plastic Recycling Solutions V-4 EXTRUSION

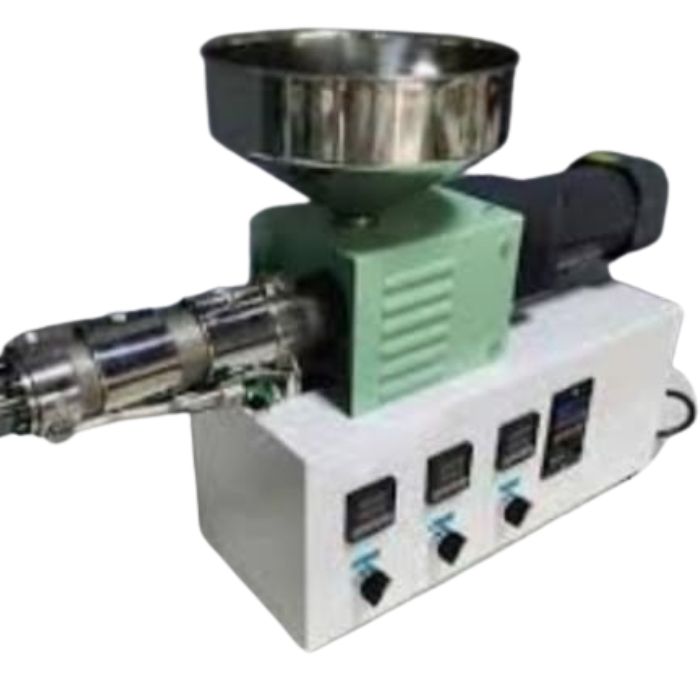

The V-4 EXTRUSION Machine converts plastic waste into usable materials for manufacturing. Built with industrial-grade components, this versatile machine offers precise temperature control, consistent output, and exceptional durability for businesses committed to sustainable production.
Applications:
Ideal for plastic extrusion, material recycling, and bulk processing.
Extrusion Equipment Design Parameters
1) 790 mm / 30D / 2 HP Smooth Screw extruder – HDPE/PP/LDPE/PS/PET
2) Process Control Panel synchronized by one master control
SPECIFIC DATA:
Material can be use Recycled HDPE/PP/LDPE/PS Grinded Scrap
Max. size of job Up to 4ft Length
Screw RPM 70 / Max.
Screw Size L- 790 mm, OD – 30mm
Barrel Size L- 578 mm, OD-40mm, ID- 30mm
Output of Extrusion Max. 20-25 Kg/Hr.
Safety features Extrusion Safety control with optimized workflow to fill mould
Total connect Load 8 X kW (Approx.)
Product Details
Key Features:
• Capacity Range: 300 to 1000 kg/hr (customizable to your requirements)
• High Output Efficiency: Designed for large-scale, continuous extrusion
• Robust Construction: Built with industrial-grade materials for durability
• Advanced Control System: Ensures accurate and uniform extrusion
• Customizable Design: Tailored to meet specific production needs
Why Choose Our V4 Extruder Machine?
• High-capacity output for large-scale operations
• Durable and efficient for continuous production
• Customizable to match your industrial requirements
MAIN EXTRUDER:
Barrel Type Barrel Type: Smooth Feed Barrier type high-speed design
Screw Barrel Material Screw Barrel Material: EN 41B Nitro alloy steel duly gas nitride
Gear Reducer Gear Reducer: Helical Gearbox with heavy-duty thrust bearing
Main Motor Main Motor: AC Motor 2HP With Frequency Drive
Barrel Heating Zones Barrel Heating Zones: 3 Heating Zones (Ceramic Band Heater with Energy Saving)
Barrel Hating Loads Barrel Heating Loads: 4 kW.
Hopper Loader Hopper Loader: M.S. Fabricated Hopper with safety measures.
Structure Structure: MS fabricated heavy‐duty structure made from angles, and channels and Covered with sheet
PROCESS CONTROL PANEL:
Temperature Controller PID Controller with Autotuning & dual display
MCB Reputed make MCB in line with every heating zone supply
Other Electrical Outfits Amp. Meter, Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing.
Protection Phase Synchronizer and Over Voltage Protection as per CE Standard.
